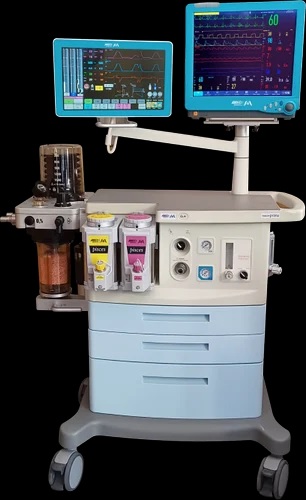

Allied Meditec Neptune Prime Anaesthesia Workstation
Most Effective And Efficient Patient Care: Active Gas Scavenging System(Optional) Auxiliary-Flowmeter O2 Auxiliary Flowmeter 15.6” Display Screen Plug-In Upgrade Modules Circle Absorber Breathing System: Fully autoclavable at 134 C and latex free Automatic absorber heating technology to avoid water condensation Automatic absorber By-pass to change soda lime during surgery Single canister system Integrated bag/vent switch for an automatic changeover from manual to mechanical ventilation Integrated pressure manometer, calibrated APL valve, O2 sensor port Request Callback Additional Information: Item Code: Galaxy-Plus Delivery Time: 2-4 weeks Packaging Details: Export Worthy
Stock Availability : Available
| Brand | Allied Meditec |
| Minimum Order Quantity | 1 Number |
| Power | 100 to 240 VAC,50/60 Hz,6.5A (Max.) |
| Frequency | 1 to100 bpm (f) |
| Battery | 120 minutes |
| Tidal Volume | 20 to 1500 mL (VT) |
| PEEP | Integrated electronic PEEP OFF,4~30cm H2O |
| Flow Trigger | 1 to 15 L/min (F) |
| Peak Flow | Greater Than 120 L/min |
| Pressure Control | 5 to 70 cm H2O |
| Pressure Support | 5 to 60 cm H2O |
| Pressure Limit | (PEEP+5) to 70 cm H2O |
| Vaporiser Mounting | 2 positions,selectatec mounting system,optional 3rd parking position |
| Gas Supply | Pipeline O2,N2O,Air Cylinder O2,N2O (Optional) |
| Pressure Gauge | Pipeline pressure gauges and Cylinder pressure gauges |
| Flow Meter | Choice of Electronic Flow meter or traditional rotameters |
| ACGO connector | 22 / 15mm |
| APL Valve | 2 to 70 cm H2O |
| By Pass | Automatic change soda lime during operation |
| Bag and Vent switch | Switch for manual ventilation and mechanical ventilation |
| Physical Dimension | 1570 x 880 x 1000 mm3 (H x W x D) |
| IE Ratio | Net weight |
| Storage | 108 kg |
| Communication Connector | VGA,RS232,RJ45,debugging interface |
| Inspiratory time | 0.1 to10s (increment 0.1 s) |
| Inspiratory Pause | OFF,5% to 50% (TipTi) |
Specification
Ully integrated, compact & ergonomic design Digital Hypoxic Device Fail-proof audio/visual oxygen failure alarm An automatic cut-off of N2O in case of O2 failure Dual/ Triple mounting of vaporizers Parking block for the third vaporizer (optional) Auxiliary O2 flowmeter Plug-In upgrade modules Dual flow sensing capability at inhalation and exhalation ports Backup O2 control independent of the electrical failure Set and user-defined priority alarms ACGO allows use with semi-open circuits Top light and backlight illumination Trolley mounted with lockable castors O2 flush 35-75 l/min Air/N2O interlock switch Neptune PRIME are advanced anesthesia workstations that combine efficient patient care with a simplicity of operation. The modular workstation among its host of features provides a choice between integrated electronic flowmeter and the traditional rotameters. Its advanced ventilation and monitoring capabilities provide a controlled and precise workflow during all stages of anesthesia delivery making it suitable for all ages of patients from neonates to adults. The ergonomically designed workstations provide a clean and uncluttered work environment by completely integrating the ventilator, breathing system, vaporizer, suction, and scavenging system.
